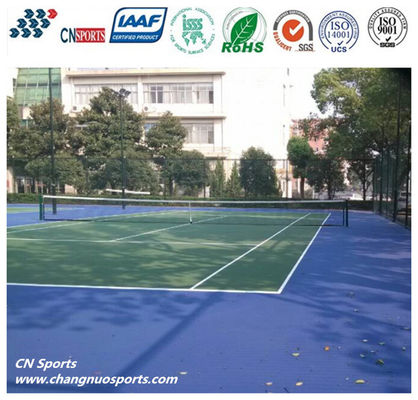

Superficie acrilica del campo da tennis verde
| Luogo di origine | La Cina |
|---|---|
| Marca | CN Sports |
| Certificazione | IAAF / ITF/RoHS/iSSS/ISO140019001/ISO14001 |
| Numero di modello | CN-S02 |
| Quantità di ordine minimo | / |
| Prezzo | US $7.5-12.5/ Square Meter |
| Imballaggi particolari | Pacchetto in barilotto /pallet |
| Tempi di consegna | All'interno di lavoro 15 giorni dopo il vostro deposito |
| Capacità di alimentazione | 150000 tonnellate all'anno |
Contattimi gratis campioni e buoni.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Deformazione verticale | 2.3mm | Allungamento a rottura | 857 |
|---|---|---|---|
| Valore rilegato | 88 | Strenth di tensione | 3.2mpa |
| Livello di protezione dell'ambiente | E1 | Rallentamento della fiamma | calss I |
| Colore | Verde, rosso, blu, grigio, giallo, ecc | Materiale | Poliuretano del silicio |
| Anni durevoli | più di 10 anni | Nome di prodotto | Corti della pavimentazione, del campo da badminton, di pallavolo del campo da tennis, corte di Futsa |
| Fondamento basso | Calcestruzzo, o Asphlat | ||
| Evidenziare | Superficie acrilica del campo da tennis verde,superficie acrilica del campo da tennis del iSSS,Pavimentazione di sport all'aperto di assorbimento di scossa |
||
Descrizione di prodotto
Shock-Absorption Silicon PU Acrylic Coating Outdoor Sport Floor Tennis Court Flooring
Product Description
The purpose of building sports courts is to ensure a professional, safe, healthy sports condition-the characteristics of hardness will bring the professional sporting feeling; the cushion effectively increasing the shock absorption and reduce the incidence of injuries to ankles, joints and ligaments. At the same time, it should reduce abrasion caused by falling and accident.
SPU acrylic tennis court system uses modified tenacious acrylic resin as the abrasion resistant layer. It’s a breakthrough for the brittleness and fissility shortcomings of the traditional acrylic material.Polymer compound material supports the surface layer well and its excellent ductility plays an effective role indynamic anti-crack performance.
It’s a design based on human kinetics and physical characteristics flooring system, with hard top layer combined with soft rebound cushion lower layer structure. It’s suitable to lay on concrete or asphalt substrates. The cushion layer is formed by single component modified polyurethane and top up with two-component modified acrylic resilience layer.
Then it combines with the permeation-type primer to form an integral rebound structure that has high adhesion and weatherability.
The prime coat isolates moisture underground and the layer has effective anti-seepage. Thus, all these ensure the floor durable.
Characteristics:
1. To promote the sport profession and protection advantage of the traditional acrylic floor
2. To improve the weakness of the traditional acrylic floor, durable and professional.
3. The quality of the production is validated by international events and it is qualified by the State Administration
4. It is of Environment Protection's product certification.
Excellent Performance
1·Buffering effect given by resilience protects the athletes’ joints and reduces sport injury.
2·The surface layer of acrylic cushion provides certain protection to accidental falls in sports.
3·The tennis court with buffering effect has a longer sport life.
4·The resilient tennis courts provide more stable ball speed and ball direction. The sport felling is better.
5·The surface layer of the acrylic cushion tennis court provides more comfortable sporting texture when athletes are
starting, stopping abruptly or sliding.
Sports Performance Data
| NO. | items | index of standard | results |
| 1 | value of rebound, % | ≥80 | 88 |
| 2 | impact absorption | 5~15 | 9 |
| 3 | Slid friction, N | 60~100 | 76 |
| 4 | Water permeability, mm/min | 0 | 0 |
Pysical Properties Data
| NO. | items | index of standard | results | |
| 1 |
Tensile elongation, % |
≥400 | 857 | |
| 2 | tensile strength, MPa | ≥1.8 | 3.2 | |
| 3 | artificial weathering ageing resistance d(300h) | No bubble, no peeling, no crack; Powder ≤grade 1, △E≤5.0 | No bubble, no peeling, no crack; Powder ≤grade 1, △E=0.9 | |
| 4 | Durability, aging test (168h) | Tensile elongation, % | ≥300 | 858 |
| tensile strength, MPa | ≥1.3 | 1.6 | ||
| 5 | wearability(750g/500r)/g | ≤0.050 | 0.035 | |
| 6 |
water resistance
|
No bubble, no peeling, allows slight discoloration, recover after 2h | No bubble, no peeling, no discoloration | |
| 7 | Flame retardancy, class | Ⅰ | Ⅰ | |
Health and Environmental Properties Data
| NO. | items | index of standard | results | |
| 1 | volatile organic compound content (VOC) (g/l) | ≤670 | 104 | |
| 2 | Benzene (%) | ≤0.3 | nought | |
| 3 | Toluene+ Ethylbenzene+ Xylenes (%) | ≤30 | 2 | |
| 4 | Free diisocyanate (TDI+HDI) (%) | ≤0.4 | nought | |
| 5 | halogenated halohydrocarbon (%) (Dichloromethane, 1.1 - dichloro ethane, 1 dichloro ethane, chloroform, 1.1.1- of three chlorine ethane, 1.1.2- three chlorine of ethane and carbon tetrachloride), (%) |
≤0.1
|
nought | |
| 6 | Soluble Heavy Metal (mg/kg) | Pb | ≤90 | nought |
| Cd | ≤75 | nought | ||
| Cr | ≤60 | nought | ||
| Hg | ≤60 | nought | ||
The performance comparison of different Acrylic tennis courts materials
|
Pavement materials |
Base requirements | Competition performance | Environmental performance | durability | Usage limits |
| SPU material | Both cement and asphalt base | The hard upper and resilient under structure is special for tennis. The low modulus cushion layer at the bottom plays the most appropriate buffer effect. The high modulus strengthen layer in the middle provides sufficient compression rebound. The tenacity hard surface provides superior sport texture. The whole system ensures the tennis court has effective buffer, slip resistance to starting, moving and rebound performance. |
Environmental. The product implements strictly the latest State Mandatory Standards of Indoor Decorating and Renovating Material and qualified in ‘China Environmental Label (type) by China's Ministry of Environmental Protection |
The base coat and the cushion layer is airtight to isolate the underground moisture and prevent bubbling. The high extensibility prevent the tiny crack caused by deformation of the cement base. The surface is wearable, scratch-resistant, and uvioresistan. It is non-aging, color lasting and not easy to sand-out. Renovations, changing color or line are convenient. | It is suitable for both indoor and outdoor and not affected by any climate in principle. After rain, it just needs to clean the water on the surface and then put into use. |
| The traditional acrylic material | Asphalt base only | The new tennis courts have good sport texture in early stage. It is comfortable to start and the friction is stable. But the buffer absorption effect is bad. It has low resilience and lacks enough sport protection. The old one gets to harden and easy to cause injury to the athletes’ joints. The sand consolidation effectiveness is worse. It sand-out easily and get to be smooth. | Environmental, odorless and non-toxic | Water resistance is not good. Low strength durability. Easy to sand-out. Low color durability. Need roll-coating renovation frequently to keep competition performance. The base material has low strengthen and easy to aging and harden. It is easy to conduct cracks on the surface. The low-priced products blend much more filler. Quality and performance change apparently. | Suitable for both indoor and outdoor. Dark soles are easy to produce friction marks on the surface. It is not easy to clear. Only if it is dry thoroughly can put into use. Otherwise, it is easy to damage the site. |
Product Structure:

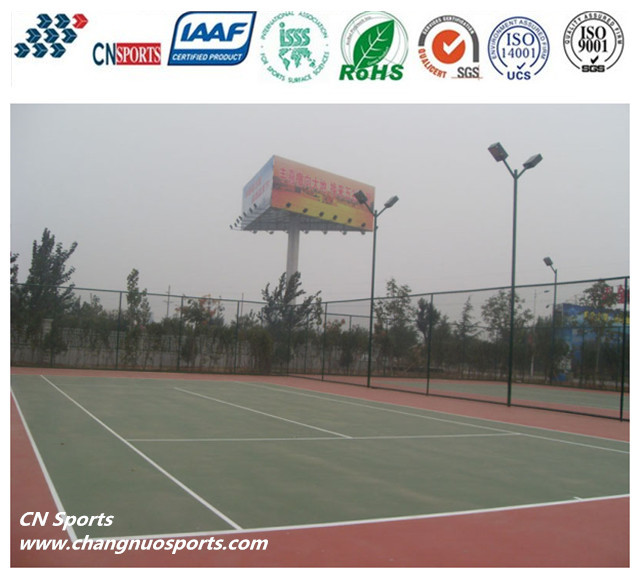

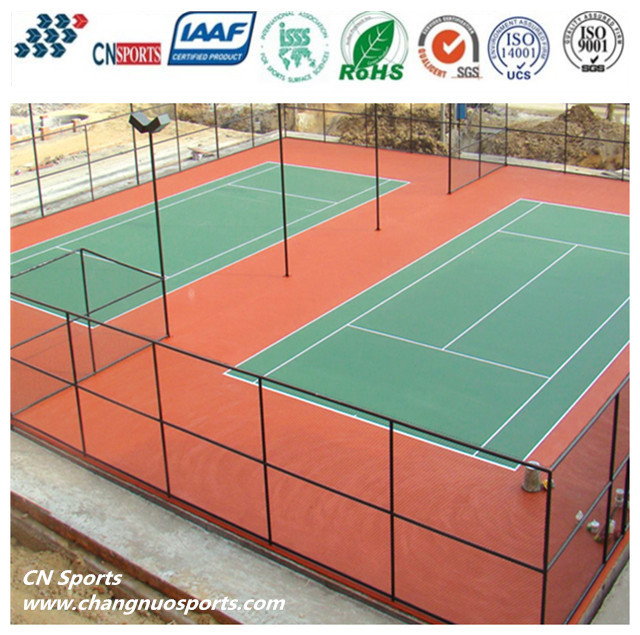

Project Case
Company&Certficate
Company Brief Introduction:
We are first class one stop material supplier in China for high quality sports matrials,such as SPU course , running track , artificial grass, rubber particles and we are also engaging in the construction of sports venues.
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year.
Our advantages (Why choose us?)
1. 1. Our products are odorless and non-toxic.
2. We have two main production bases and can make every kinds of SPU venues, running track, artificial grass, sports flooring construction and colloidal particles.
3. 3 3. We have more than 20 years' development and production history.
4. E 4. Exceed ten million squre meters every year in the world.
FAQ:
1. Are you manufacturer or trader?
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year. For all the products we produce by ourselves and with our own logo. Welcome to visit our factories if interested.
2. What kind of certificate you have?
We have certificate of RoHS,ISSS,CE,ITF2,ITF5,IFFF, IAAF, ISO9001 and ISO14001,SGS, ASG,etc and can export our products all over the world.
3.Is your products safe and enviroment friendly?
Yes, our products are safe and quality assured. It is Eco-friendly and harmless.
